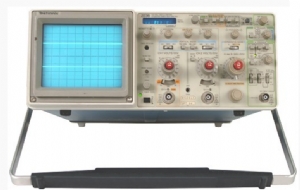

2236

The 100 MHz 2236 introduces a new concept in waveform measurement: a 100 MHz counter/time/DMM, integrated into the scope is vertical, horizontal and trigger systems. This convenient feature simplifies setups (by allowing consolidated set-ups and combinations of measurements) heightens measurement confidence, and expands the scope is versatility. The 2236 replaces mental gymnastics and roundabout problem solving with simple, direct, acurate, digital readouts that supplement your analog measurements

The Tek 2236 provides easy, accurate, and versatile measurements through microprocessor-driven waveform analysis. Autoranged and autoaveraged counter/timer measurements are made on the signal triggering the A sweep, or in gated modes, on the signal triggering the B sweep. Autoranged DMM measurements are made through floating DMM side inputs and up-range at 5000 counts. Channel 1 voltage measurements made on channel 1 signal include: dc, relative dc, relative and true ac RMS voltage. Self testing includes power-on and user interactive routines.

The 2236 uses intensified markers on-screen to define rhe area to be measured on a burst or short duration pulse train. Gated counter measurements are made via the B trigger with operator prompting and automatic, digital readout of results. With period averaging the 2236 can make low-frequency measurements instantly, in contrast to the several seconds delay encountered on conventional counter/timers.

The csope and DMM can be applied simultaneously, with concurrent CRT and digital-resdout displays.The same probe feeds data to the DMM, thus eliminating tangled to obtain true ac RMS or dc voltage readings DMM autoranging simplifies set-up. An ohmmeter range of 2 GΩ - one hundred times the range of most such devices - allows service technicians to quickly pinpoint even small amounts of transformer leakage, or designers to accurately check the insulating property of capacitors.

Frequency, period, and width measurements are pushbutton simple, with accuracies to 0,001% and beyond. On screen operator prompts further ensure failsafe set-up.

An audible, automatic diode/junction detection and continuity signal saves both time and interpretation errors by allowing the operator to concentrate on probing rather than on observing the front panel.

In strong testimony of the incomparable reliability of the 2000 family of osilloscope, Tek offers a three year warranty: labor and parts (including CRT), excluding probes. Beyond the basic three years of warranty coverage up to five years, offering you a choice of three practical service plans to meet your specific service needs.
